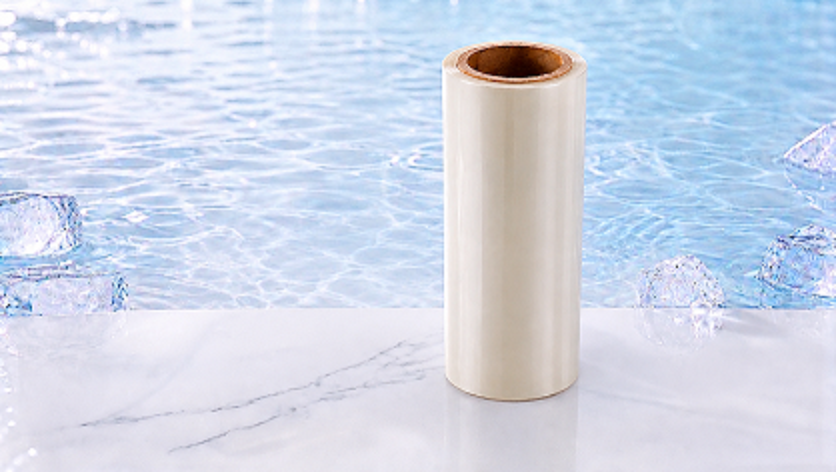

Transparent high barrier film
<SPP-HC-1801>
SiOx-BOPP

       Topcoat







       Silicon Oxide (SiOx) Coating Layer









   Primer



   BOPP substrate 18μm

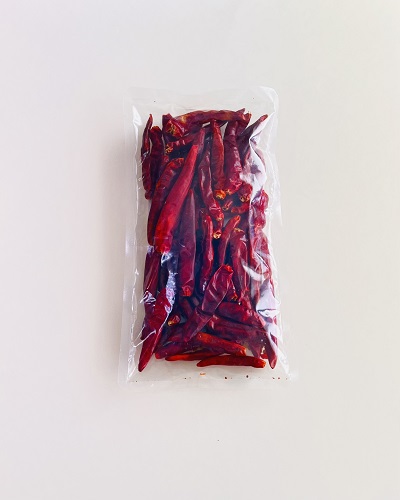

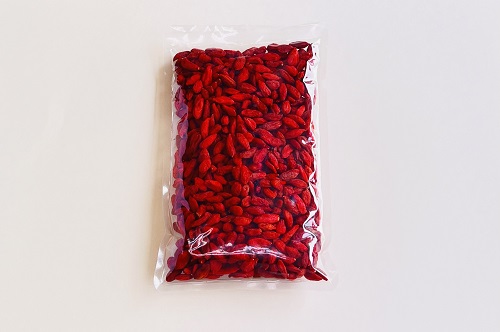

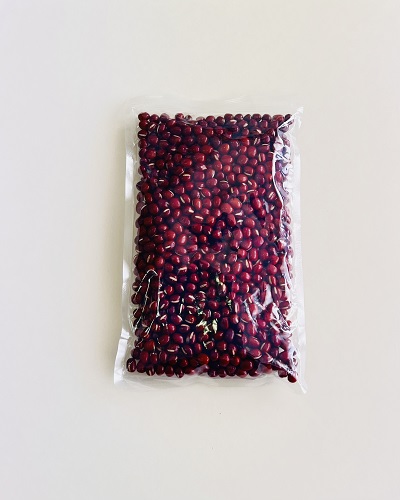

Product application

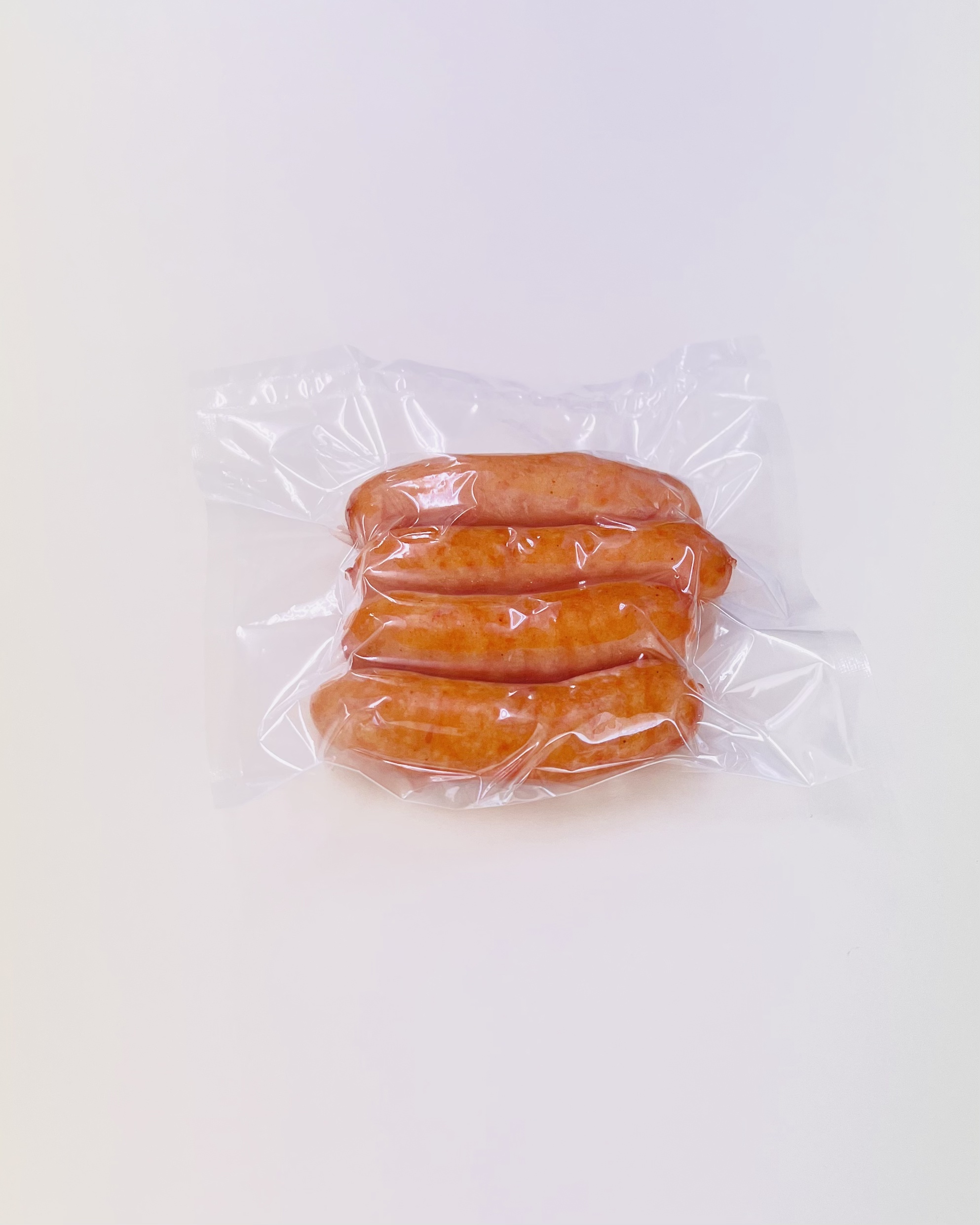

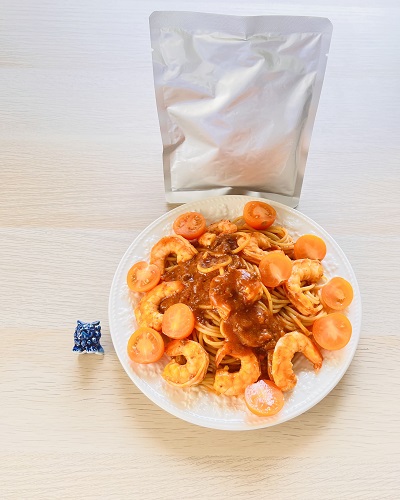

Steamed and cooked food packaging

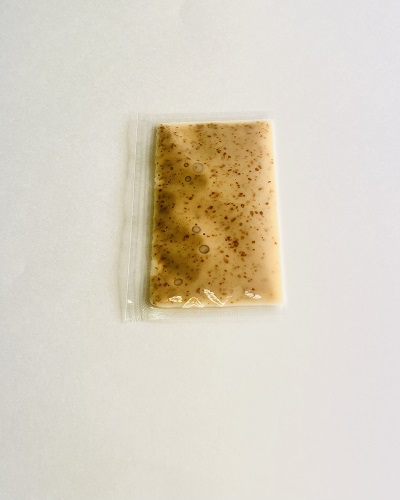

pastry sauce packaging

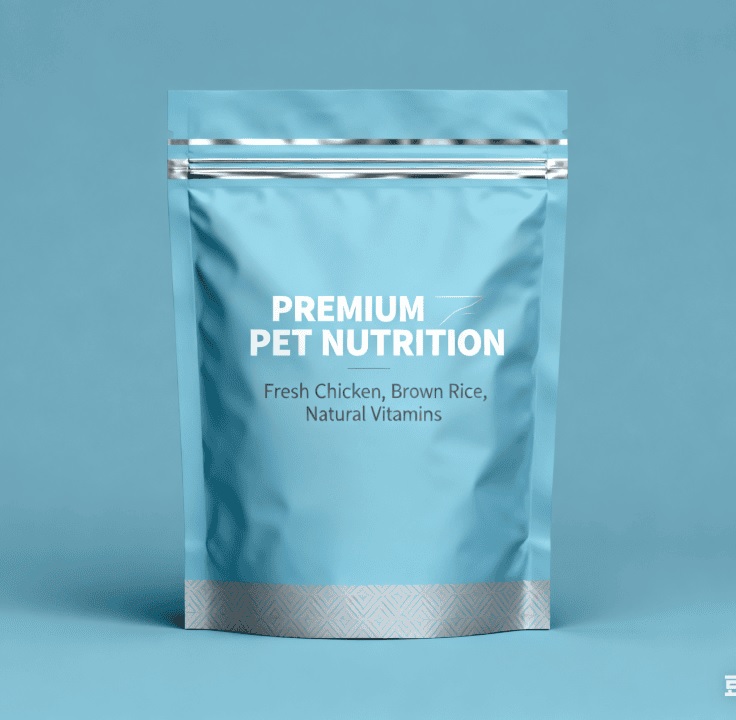

Pet food packaging

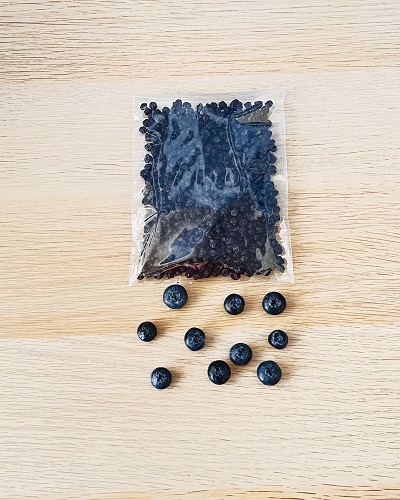

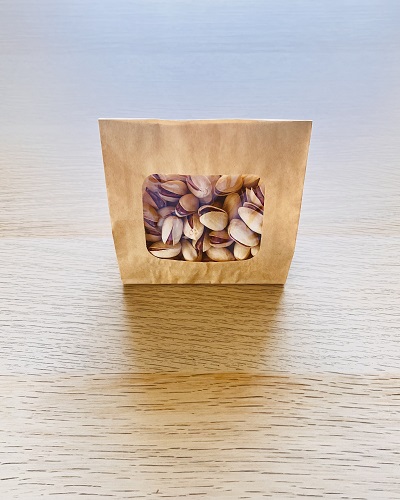

Snack foods
Product features
Retortable
1 / 13
Eco-friendly
2 / 13
Aroma retention
3 / 13
Oxygen barrier
4 / 13
Weather resistance
5 / 13
Transparent, non-metal
6 / 13
Water vapor barrier
7 / 13
Bending resistance
8 / 13
Suitable for lamination process, good printability
9 / 13
No chlorine gas release
10 / 13
Almost no residue upon complete combustion
11 / 13
Microwave safe. No interference with metal detector, RFID IC tags
12 / 13
Mono-material compatible
13 / 13
Product technical indicators

Performance

Target value

Test value

Testing Standards

Thickness

18±1μm

18.3μm

GB/T 6672-2001

Tensile strength

MD

≥100Mpa

107Mpa

GB/T 1040.3-2006

TD

≥200Mpa

225Mpa


Elongation at break

MD

≤200%

140%

GB/T 1040.3-2006

TD

≤100%

70%


Oxygen Transmission Rate OTR (23°C, 50% RH)

Before steaming

≤0.5cc/㎡/day

0.3cc/㎡/day

ASTM D3985

Water Vapor Transmission Rate (WVTR) (38°C, 90% RH)

Before steaming

≤1g/㎡/day

0.7g/㎡/day

ASTM F1249

Before steaming

≥89%

89.7%

GB/T 2410-2008

Haze

≤5%

3.35%

GB/T 2410-2008

Printability

Surface tension

Coating layer

≥46dyn/cm

50dyn/cm

GB/T 14216-2008

Non-coated surface

≥38dyn/cm

40dyn/cm


Boil resistance

121°C, 30 minutes

Acceptable


※ The data are the results of internal testing and are not guaranteed values.

※ Test of water vapor transmission rate (WVTR) and oxygen transmission rate (OTR): Conducted using the MOCON equipment.

Product storage, packaging and shelf life
1 / 2
Storage conditions
Store in an environment below 40°c (104°F) and 60% RH.
Shelf Life
1 year

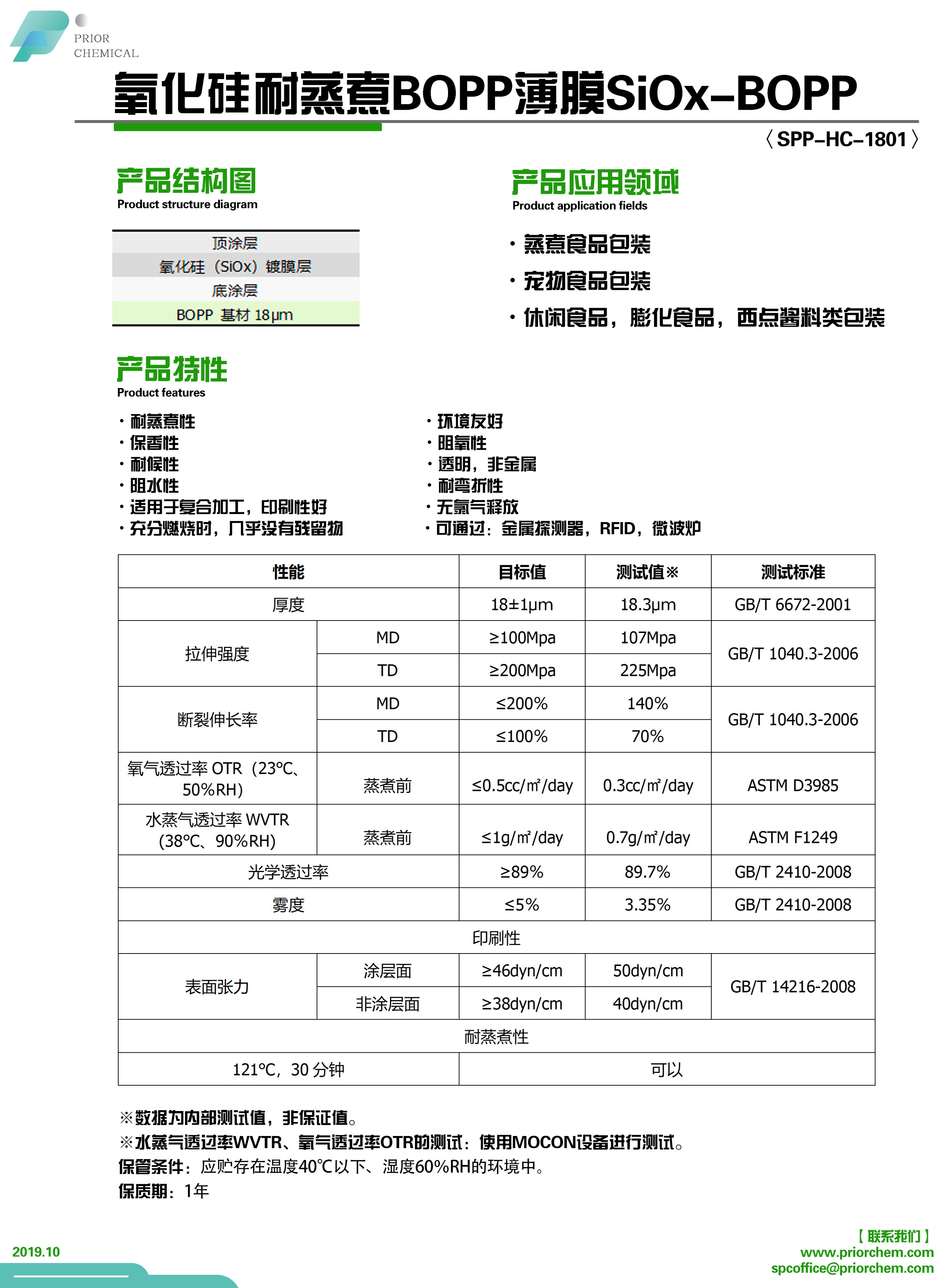

Download Center
