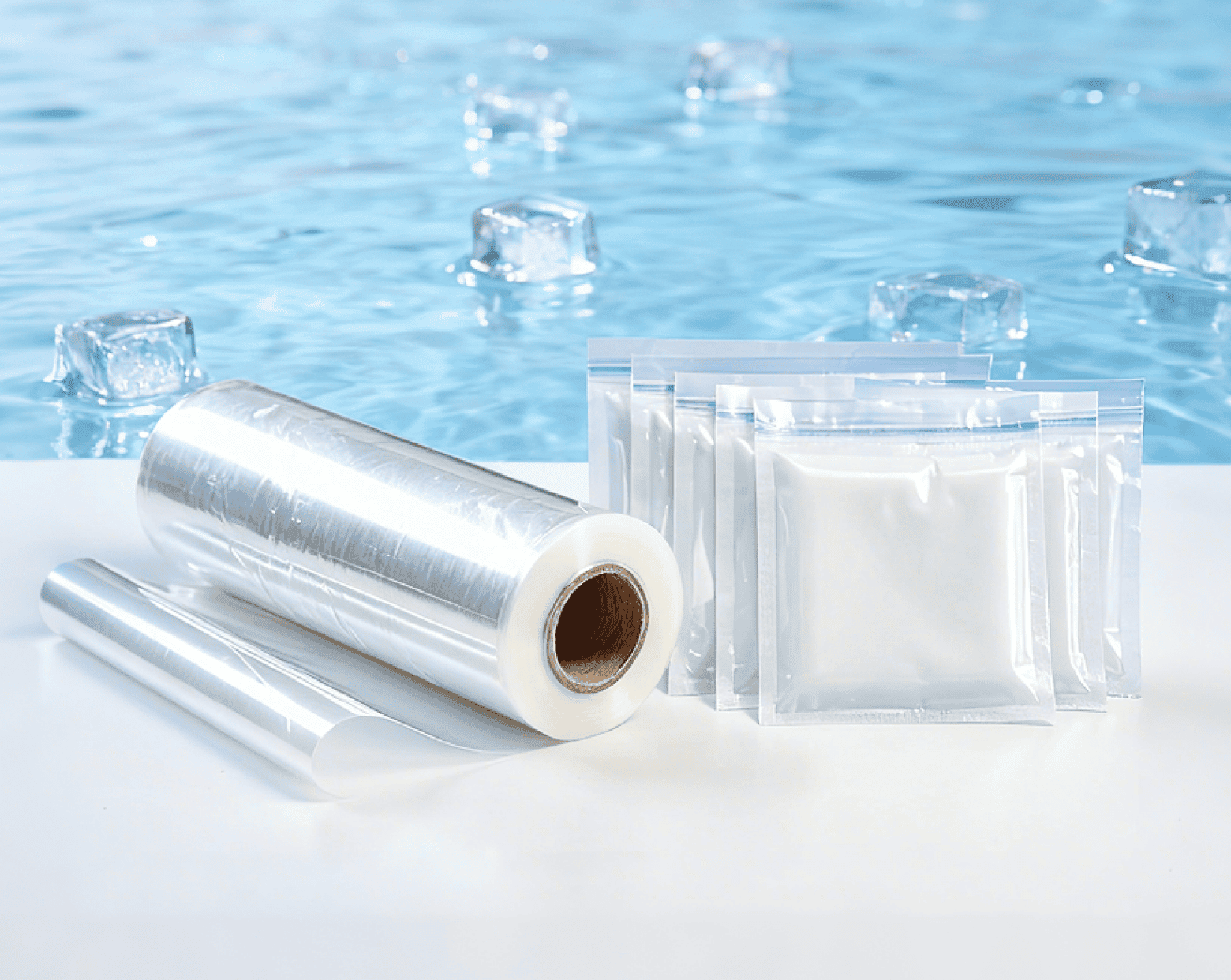

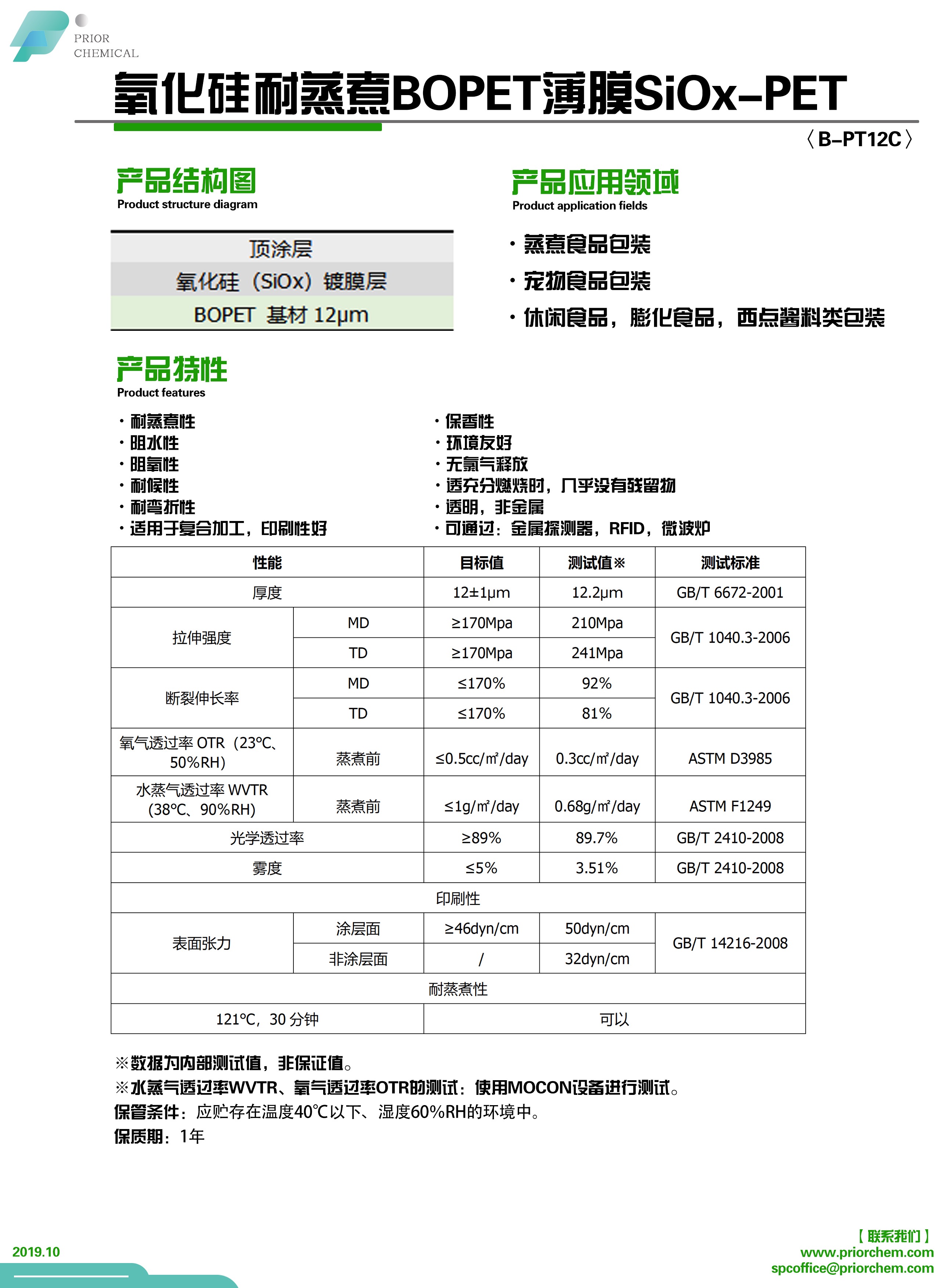

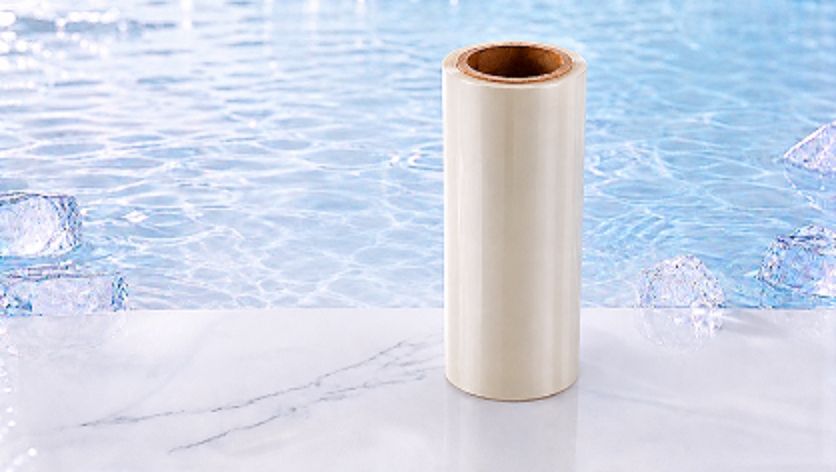

Transparent high barrier film
<B-PT12C>

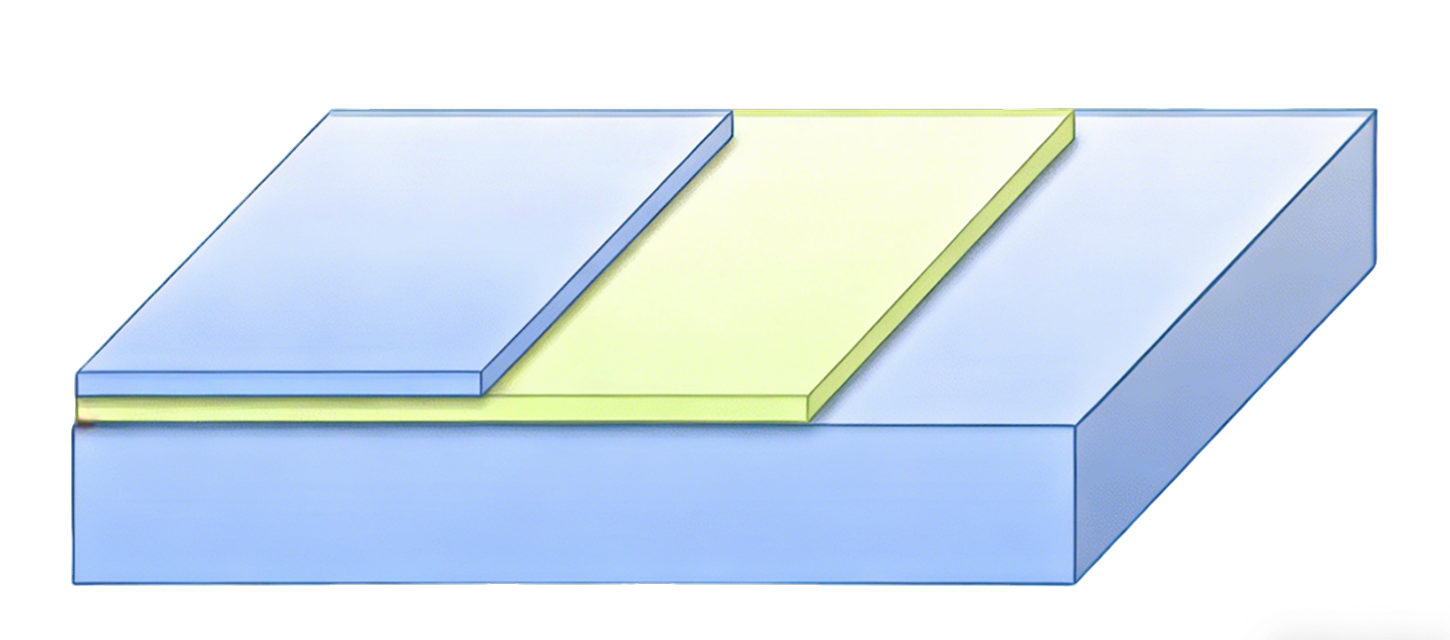

SiOx-PET

     Top Coating





                        Silicon Oxide (SiOx) Coating Layer









   BOPET Substrate 12μm

Product application

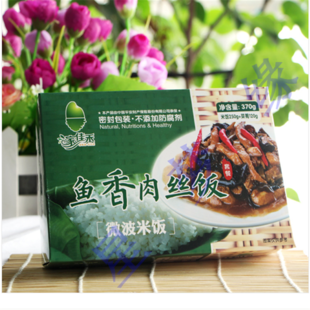

Steamed Delights Food Packaging

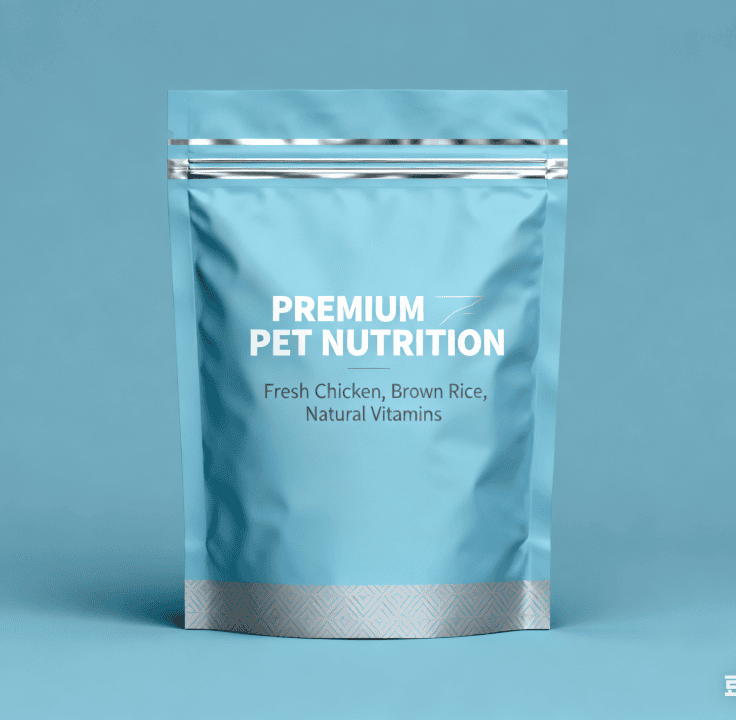

Pet Food Packaging

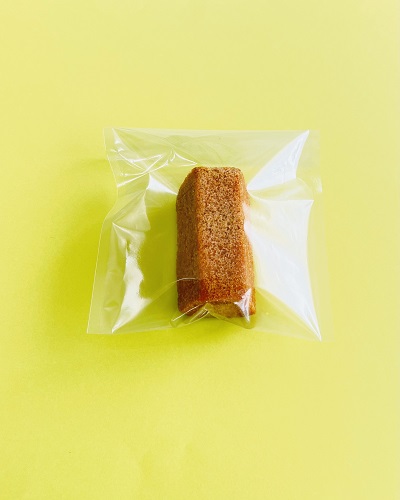

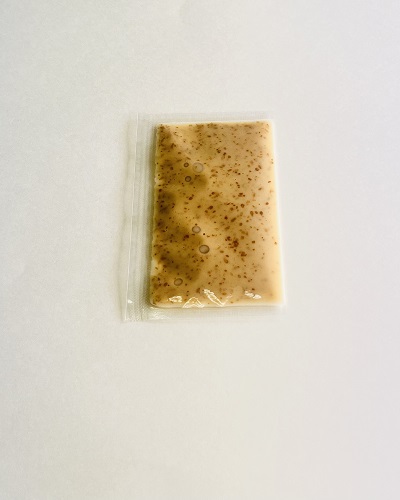

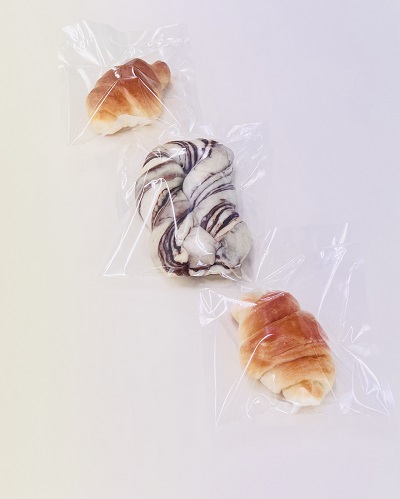

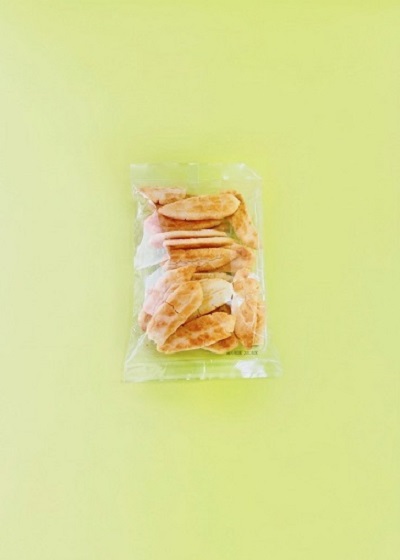

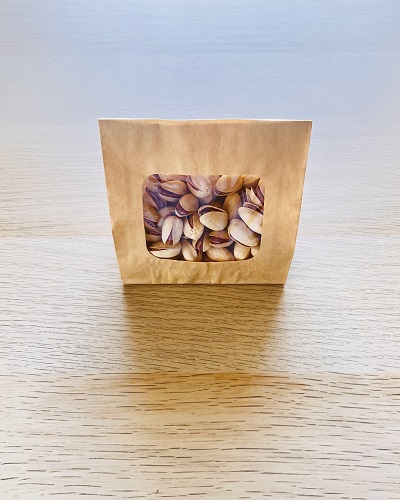

Snack Foods, Puffed Snacks, and Western-Style Pastry Sauce Packaging
Product features
Retortable
1 / 13
Aroma retention
2 / 13
Water vapor barrier
3 / 13
Eco-friendly
4 / 13
Oxygen barrier
5 / 13
No chlorine gas release
6 / 13
Weather resistance
7 / 13
Almost no residue upon complete combustion
8 / 13
Bending resistance
9 / 13
Transparent, non-metal
10 / 13
Suitable for lamination process, good printability
11 / 13
Microwave safe. No interference with metal detector, RFID IC tags
12 / 13
Mono-material compatible
13 / 13
Product technical indicators

Performance

Target value

Test value

Testing Standards

Thickness

12±1μm

12.2μm

GB/T 6672-2001

Tensile strength

MD

≥170Mpa

210Mpa

GB/T 1040.3-2006

TD

≥170Mpa

241Mpa


Elongation at break

MD

≤170%

92%

GB/T 1040.3-2006

TD

≤170%

81%


Oxygen Transmission Rate OTR (23°C, 50% RH)

Before steaming

≤0.5cc/m2/day

0.3cc/m2/day

ASTM D3985

Water Vapor Transmission Rate (WVTR) (38°C, 90% RH)

Before steaming

≤1g/m2/day

0.68g/m2/day

ASTM F1249

Before steaming

≥89%

89.7%

GB/T 2410-2008

Haze

≤5%

3.51%

GB/T 2410-2008

Printability

Surface tension

Coated surface

≥46dyn/cm

50dyn/cm

GB/T 14216-2008

Uncoated surface

/

32dyn/cm


Boil resistance

Boil resistance

Can


※ Data represents internal test values and is not guaranteed.

※ Testing for Water Vapor Transmission Rate (WVTR) and Oxygen Transmission Rate (OTR): Conducted using MOCON equipment.

Product storage, packaging and shelf life
1 / 2
Storage conditions
Store in an environment with a temperature below 40°C and humidity at 60% RH.

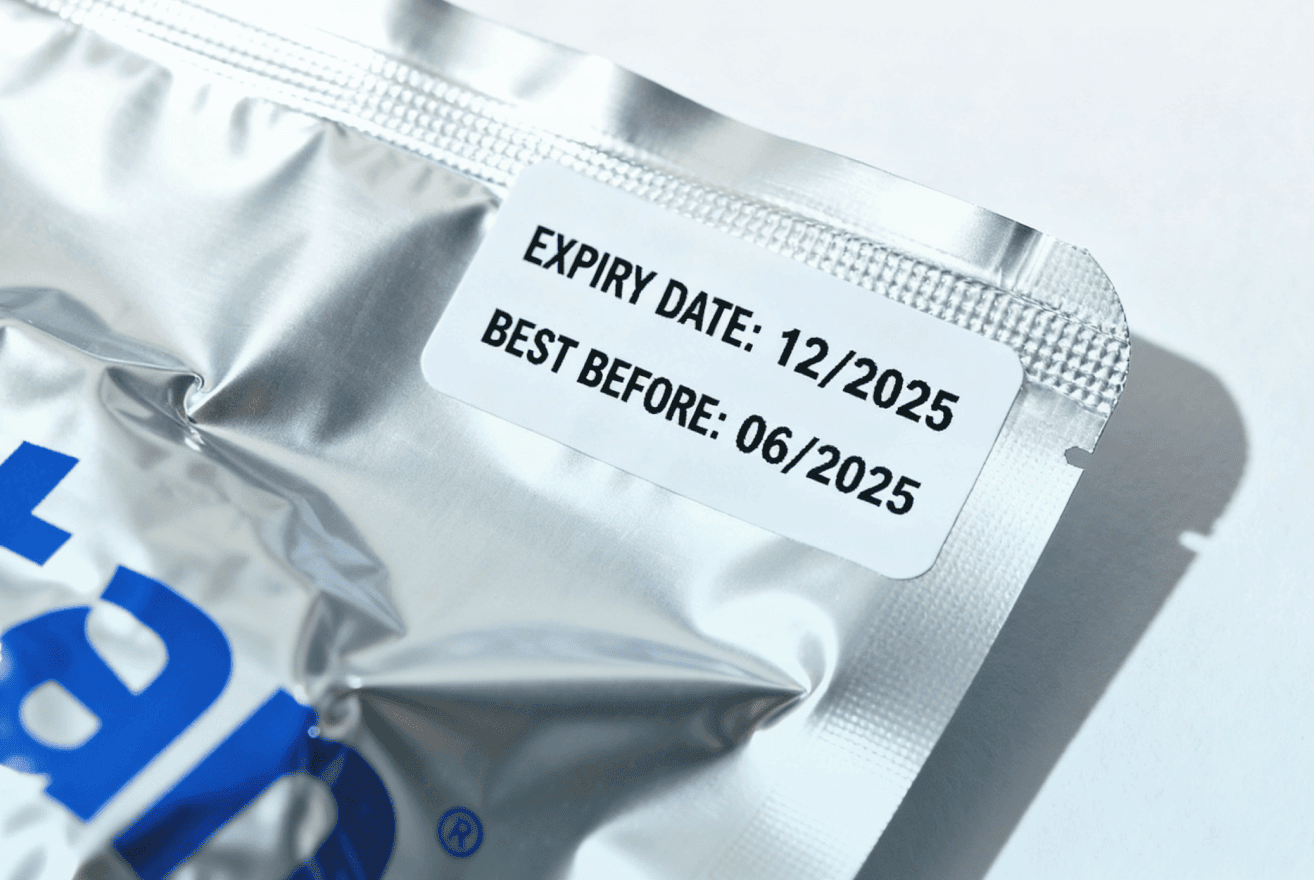

Shelf Life
1 year
